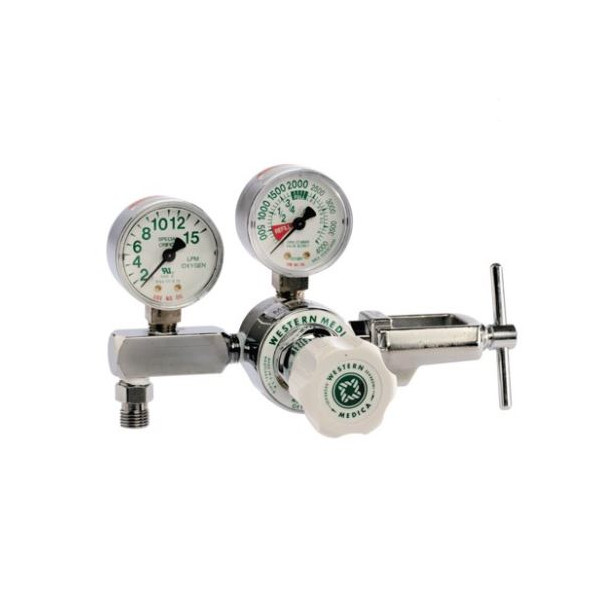

Single Stage Regulator

  • Chrome-plated brass body with all brass high-pressure chamber
  • Tested to CGA Standards which include ignition testing
  • Maximum inlet pressure 3000 psi
  • Maximum static delivery pressure range 158 psi nominal
  • Internal re-seating relief valve protects against over pressurization
  • 29 diameter gauges on M1 Series
  • 1.5" diameter gauges on MR Series Compact
  • Dual scale flow gauge: LPM and CC/M
  • Durable neoprene diaphragm
  • Sintered filter for additional safety and to extend regulator life
  • UL listed
  • Standard DISS 1240 outlet connection and plastic swivel hose barb
  • 6-year limited warranty

$156.95$195.95

SKU DescriptionNumeric SizeQTY Price
8-2002-16

O2 Regulator

0-16 LPM1 $156.95
8-2002-88

O2 Regulator

0-8 LPM1 $195.95

Description

  • Chrome-plated brass body with all brass high-pressure chamber
  • Tested to CGA Standards which include ignition testing
  • Maximum inlet pressure 3000 psi
  • Maximum static delivery pressure range 158 psi nominal
  • Internal re-seating relief valve protects against over pressurization
  • 29 diameter gauges on M1 Series
  • 1.5″ diameter gauges on MR Series Compact
  • Dual scale flow gauge: LPM and CC/M
  • Durable neoprene diaphragm
  • Sintered filter for additional safety and to extend regulator life
  • UL listed
  • Standard DISS 1240 outlet connection and plastic swivel hose barb
  • 6-year limited warranty
