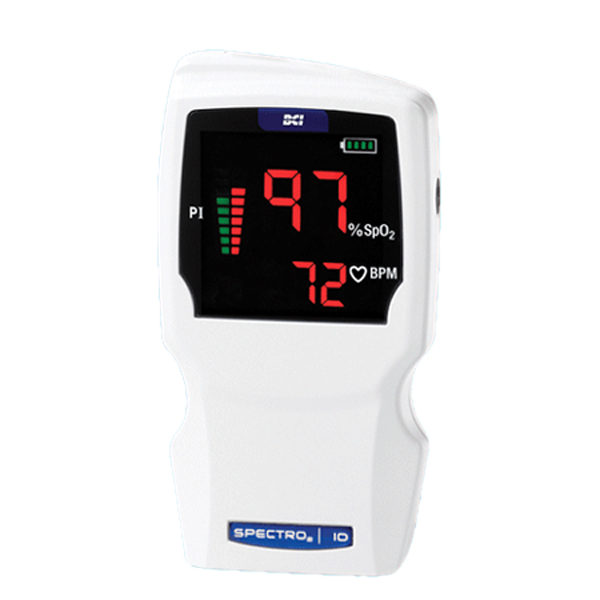

BCI Spectra2/10 Pulse Oximeter

• Reliable Performance
• Simple, One-handed operation
• Durable Design
• Protective Rubber Case Cover available
• Easy to view from wide angles
• 50% larger LED than comparable hand held devices

SpO2 (Functional)

• Range 0-99% (1% increments)
• Standard Accuracy Adult/Ped +/- 2 Arms at 70-99%
• Low Perfusion Accuracy
• Adult/Ped +/-2 Arms at 70-99% Less than 70% unspecified (Pulse amplitude <1% Tested using industry standard simulator).
• Averaging – 8 beats

Pulse Rate

• Range – 30-254 bpm range (1 bpm increments)
• Standard Accuracy +/- Arms over 30-250 bpm
• Low Perfusion Accuracy +/-3 Arms over 30-254 bmp range. Less than 70% unspecified (Pulse amplitude <1% Tested using industry standard simulator.)
• Averaging – 8 seconds

Pulse Signal Strength

• Range 0 to 9 indicator, indicates logarithmic strength of patient pulse
• Display – 9 segment red LED barograph

Pulse Amplitude Index

• Range 0% to 20% (0.2% increments)
• Display 9 segment green/yellow LED barograph

Power Requirements

• Battery 4 AA alkaline or custom 2-cell Lithium Ion rechargeable battery pack
• External (from AC Charger) 8V, 3A output; input of 100-240 VAC, 50 Hz, 60Hz
• External (from USB)
  Input: 5V, 500mA max (USB powered source)
  Output: 9v, 230mA max to oximeter

Battery Life

• Alkaline Cells Life – Approx 32 hours of use
• Rechargeable Battery Life
  Approx 54 hours of continuous use (new)
  Approx 3 hours typical recharge time

Memory – Stores data for up to 99 patients

Trend Storage

• Parameters
  %SpO2: Pulse Rate. Pulse amplitude Index and Relative Time
• Interval 4 seconds
• Capacity 144 hours at 4 second intervals

Environment

• Operating Temperature
  Oximeter and accessories: 0°C to 55°C (32°F to 130°F)
  Power supply: 0°C to 40°C (32°F to 104°F) Li+battery charging 5°C to 45°C (41°F to 113°F)
• Relative Humidity
  Operating 15 to 95% (non-condensing)
  Storage: 10 to 95% (non-condensing)
• Altitude Up to 10,000 ft
• Shock and Vibration – Transport per ISO 9919
